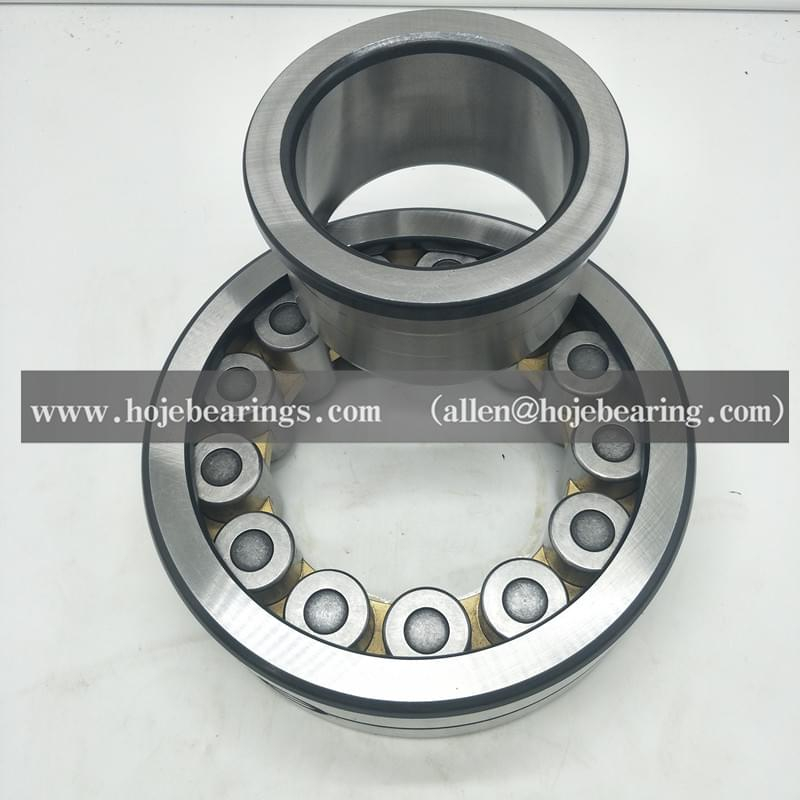

LSL192326 bearing belongs to Schaeffler LSL series cylindrical roller bearings,LSL192326 Cylindrical roller bearing is semi-locating bearing,with disc cage,Bearing Inside diameter d 130 mm,Outside diameter D 280 mm,Thickness T/B 93 mm,bearing weight 27.2 KG,INA brand,Cylindrical roller bearings. We export LSL 192326 INA Cylindrical roller bearingand relative products with on-time delivery, superior quality and the most reasonable price .If you need series relating to LSL 192326 INA Cylindrical roller bearing or technical data and relative drawings of LSL 192326 INA Cylindrical roller bearing ,Please call or email us with your request.
| New Model/Bearing number: | LSL192326 Bearing |
| Inside diameter (ID d): | 130 mm |
| Outside diameter (OD D): | 280 mm |
| Thickness/width (T/B/H): | 93 mm |
| Basic dynamic load rating (Cr): | 1190 kN |
| Basic static load rating (Cor): | 1300 kN |
| Reference speed (Grease rpm): | 4900 r/min |
| Limiting speed (Oil rpm): | 4900 r/min |
| Weight, Mass (M): | 27.2 kg |
| Category: | Cylindrical Roller Bearings |
1. Packaging Detail of bearing LSL192326:according to your requirement or HOJE package: plastic bag/plastic tube + single box+carton + plywood pallets
2. Delivery Detail of LSL192326 bearing :within 3-7 days after confirmed this order
3. Payment term of LSL192326 Bearing and our products:western union,T/T
1. Cheap price with good quality, Good sales in the market.
2. We use the good quality grease make sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in LSL192326 bearing or send your design sample to us, we can do the customization for you.
| d | D | B | M | Cr KN | Cor KN | n | Bearing Model |
| (kg) | (1/min) | ||||||
| 80 | 170 | 58 | 6.1 | 475 | 495 | 8800 | LSL192316 |
| 85 | 180 | 60 | 7.3 | 500 | 520 | 8300 | LSL192317 |
| 90 | 190 | 64 | 8.6 | 590 | 610 | 7900 | LSL192318 |
| 95 | 200 | 67 | 10 | 610 | 660 | 7500 | LSL192319 |
| 100 | 215 | 73 | 12.8 | 750 | 790 | 6300 | LSL192320 |
| 110 | 240 | 80 | 17.3 | 880 | 940 | 5700 | LSL192322 |
| 120 | 260 | 86 | 22 | 1060 | 1150 | 5300 | LSL192324 |
| 130 | 280 | 93 | 27.2 | 1190 | 1300 | 4900 | LSL192326 |
| 140 | 300 | 102 | 34 | 1340 | 1470 | 4550 | LSL192328 |
| 150 | 320 | 108 | 40.7 | 1420 | 1780 | 4250 | LSL192330 |
| 160 | 340 | 114 | 48.1 | 1600 | 2020 | 4000 | LSL192332 |
| 170 | 360 | 120 | 57.5 | 1750 | 2230 | 3750 | LSL192334 |
| 180 | 380 | 126 | 67.4 | 1850 | 2440 | 3550 | LSL192336 |
| 190 | 400 | 132 | 78.1 | 2110 | 2750 | 3400 | LSL192338 |
| 200 | 420 | 138 | 89.3 | 2350 | 3050 | 3250 | LSL192340 |
| 220 | 460 | 145 | 108 | 2500 | 3200 | 2950 | LSL192344 |
| 240 | 500 | 155 | 138.6 | 2750 | 3550 | 2700 | LSL192348 |
| 260 | 540 | 165 | 168 | 3400 | 4400 | 2500 | LSL192352 |
| 280 | 580 | 175 | 206.6 | 3700 | 4850 | 2330 | LSL192356 |
| 300 | 620 | 185 | 253 | 4150 | 5600 | 2170 | LSL192360 |
