TSUBAKI CAM CLUTCH BB25-1K-K BB25-2K-K ONE WAY BEARING WITH KEYWAY

Material : Chrome steel
Cage : Steel
Inside : 25 mm
Outside : 52mm
Thickness : 15 mm
Cr (kN) : 10.7 KN
Cor(kN) :6.3 KN
Inner rpm (r/min) : 2500
Outer rpm(r/min) : 1400
Weight(kg) : 0.15KG
Brand :TSUBA

Quantity:

TSUBAKI Cam Clutch BB25-1k-k BB25-2K-K One Way bearing with keyway

BB25-1K-K One Way Bearing have keyway on inner race, BB25-2K-K one way bearing have keyways on inner- and outer race. BB25 one way bearing inner size is 25mm,outer size is 52mm,width size is 15mm.

TSUBAKI CAM CLUTCH BB25-1K-K BB25-2K-K ONE WAY BEARING DETAILS :

1 . BB Series Clutches are pre-lubricated with special grease and do not need any maintenance or additional grease before use.
2 . BB-1K-K Series one way bearings have keyways on inner race.
3.  BB-2K-K Series one way bearings have keyways on inner- and outer race.
4. The arrow on the inner race shows the direction of inner race engagement.

TSUBAKI CAM CLUTCH BB25 ONE WAY BEARING DIMENSIONS AND SPECIFICATION::


Inside Diameter (d)

25 mm

Outside Diameter (D)

52 mm

Thickness/Width(T/B/H)

15 mm


Weight/Mass (M) 0.15 kg
Basic Dynamic Load Rating(Cr) 10700 N
Basic Static Load Rating(C0r) 6300 N
Inner Race rpm (r/min) 2500 /min
Outer Race Speed (Oil rpm) 1400 /min

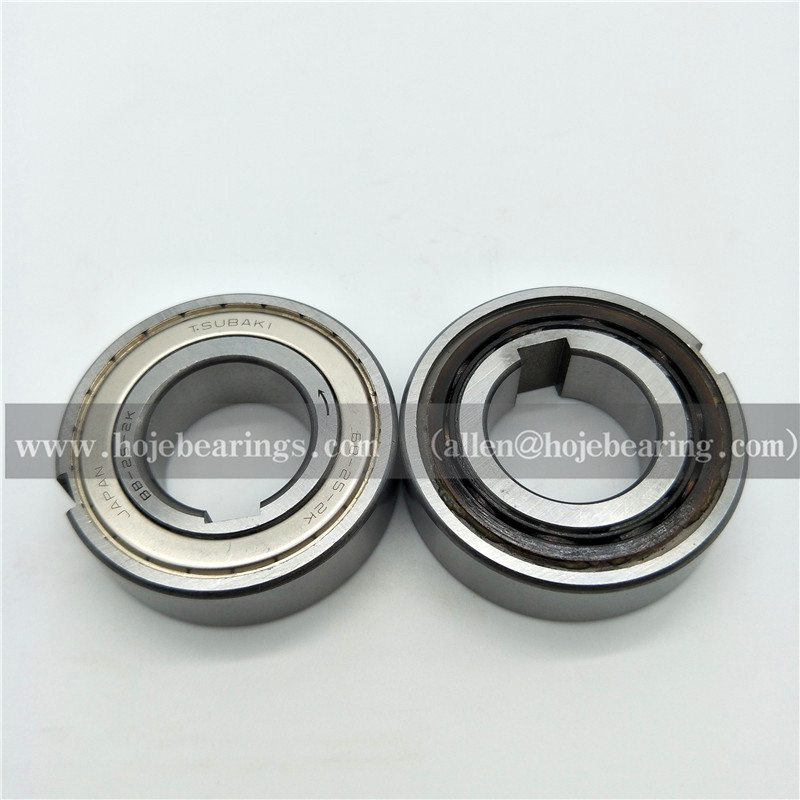

BEL
OW IS THE PICTURE
 OF TSUBAKI CAM CLUTCH BB25-1K-K BB25-2K-K ONE WAY BEARING WITH KEYWAY

TSUBAKI Cam Clutch BB25-1k-k BB25-2K-K One Way bearing with keyway

BB25-1k-k bearing

BB25-2K-K bearing
