INA ZKLF70155-2Z-HL-HC
INA
Axial angular contact bearings ZKLF70155-2Z, ZKLF70155-2Z-HL-HC,ZKLF80165-2Z with ceramic balls
BrandINA
Item NumberZKLF70155-2Z-HC INA
CategoryAngular Contact Thrust Ball Bearings, Double Direction
Inner (d) MM70
Outer (D) MM155
Width (B) MM45
Inner (d) Inch2.7559
Outer (D) Inch6.1024
Width (B) Inch1.7717
Weight (kg)4.9
Cage TypeP - Plastic Molded Cage
PrecisionH4 - Hybrid / Ceramic Balls / P4
The ZKLF70155-2Z-HC INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.
The outer ring of the ZKLF70155-2Z-HC INA is equipped with bolt holes, allowing this bearing to be easily mounted directly onto or into the adjacent structure. No separate cover is needed to secure the bearing, reducing installation time and effort. Additionally, the outer ring has a groove for easy removal from the housing. The ZKLF70155-2Z-HC INA thus enables a rigid bearing arrangement that is easy to assemble and disassemble.

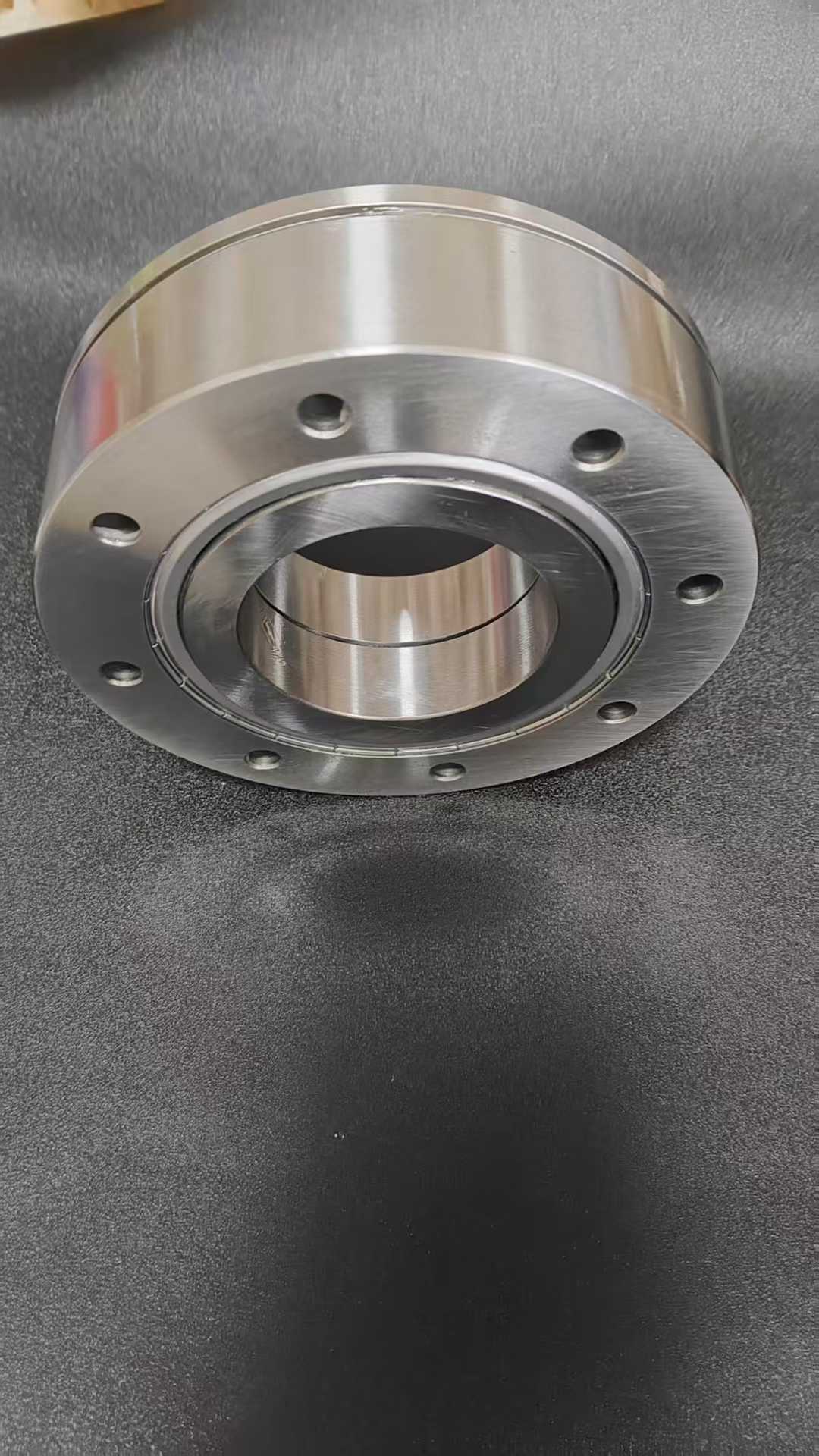

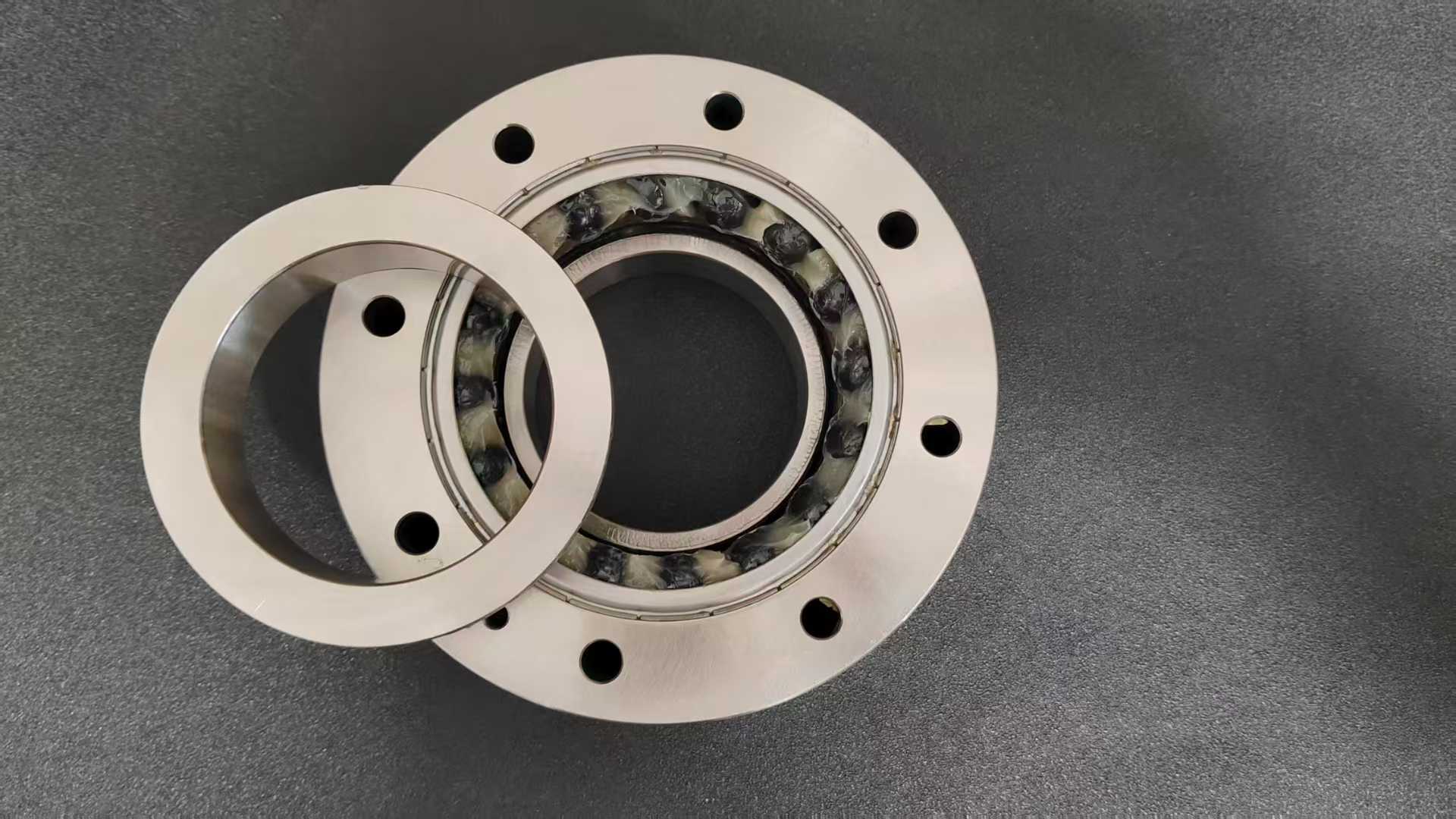

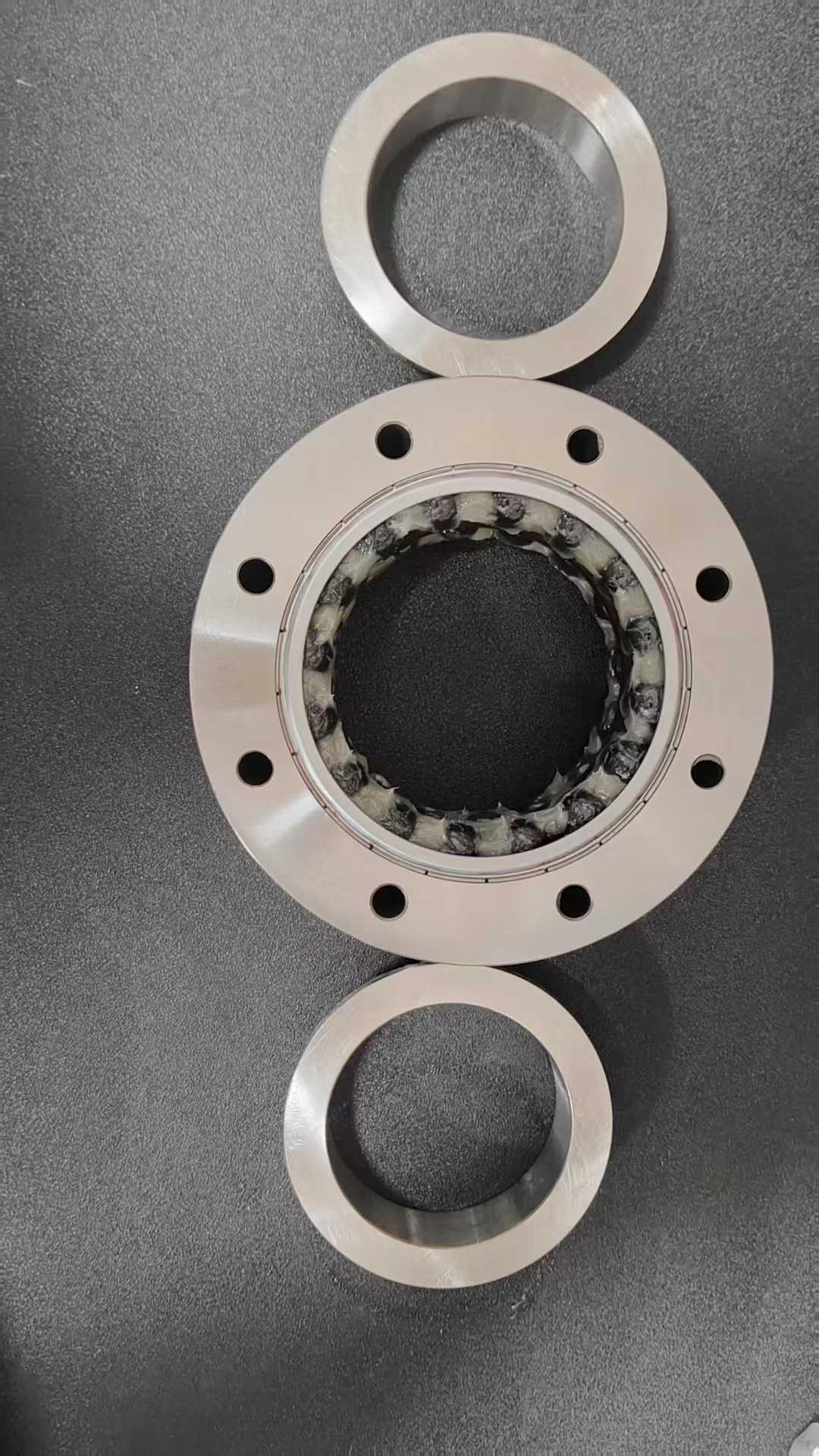

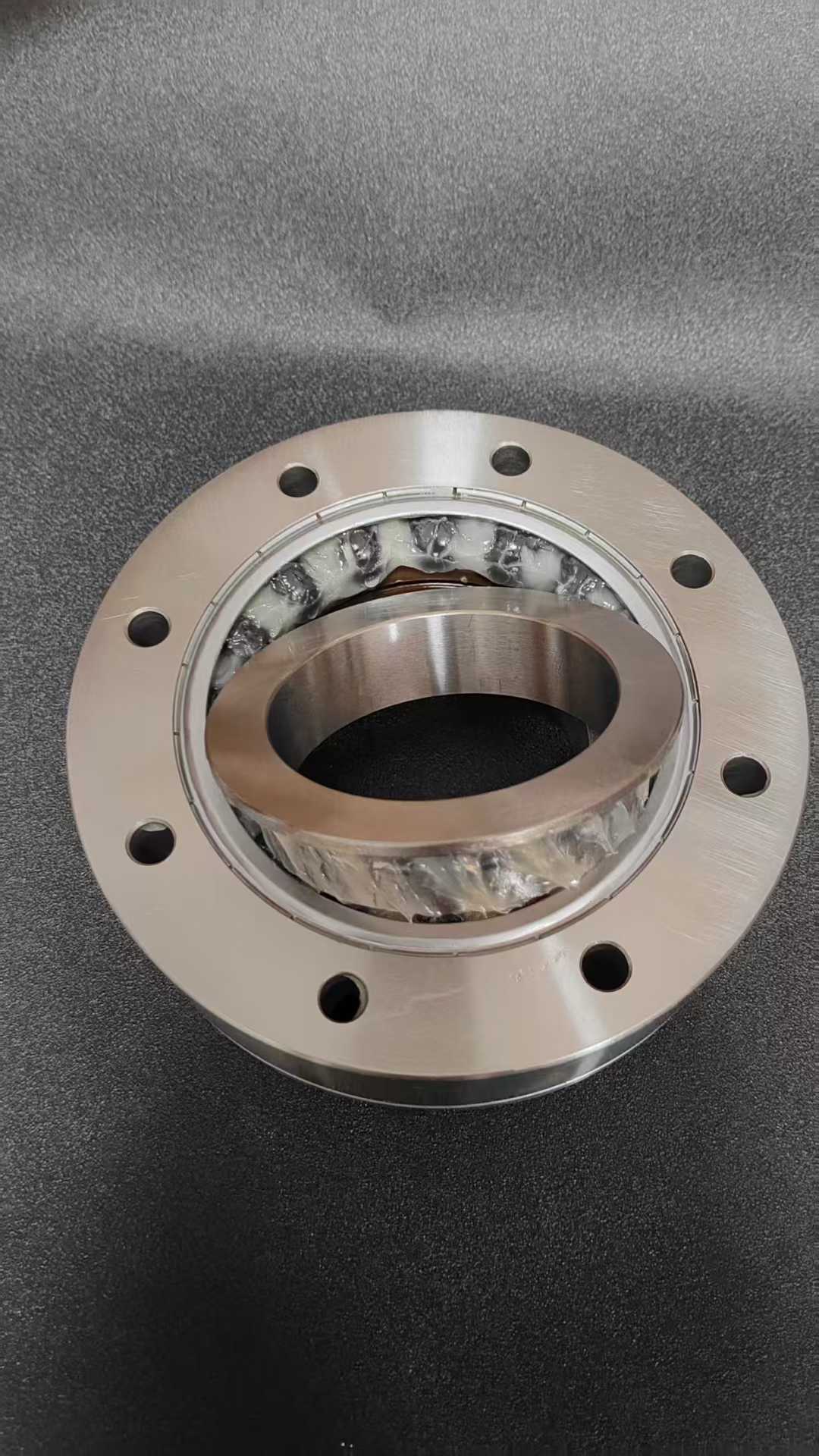

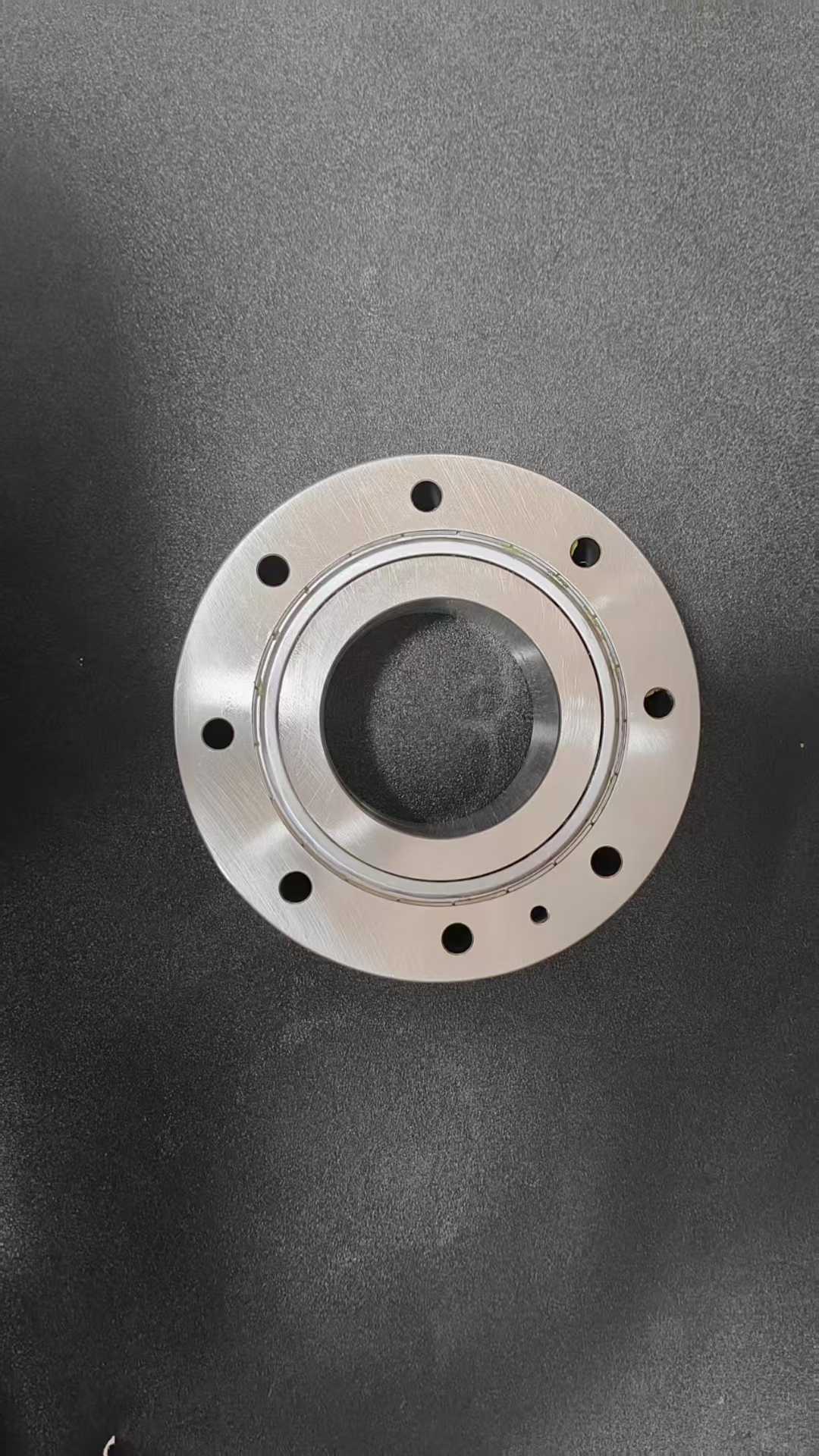

Product Picture
Company Advantages
1. FREE SAMPLES: contact us by email or trade manager, and we will send the free samples according to your request.
2. World-Class Bearing: We provide our customers with all types of bearing with world-class quality.
3. OEM or Non-Stand Bearings: Any requirement for Non-standard bearings is Easily Fulfilled by us due to our vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5. After Sales Service and Technical Assistance: Company provides after-sales service and technical assistance as per the customer's requirements and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant, and high-reliability bearings with excellent quality and better performance. Resulting in increased cost savings.
8. Attending customer queries promptly: We believe that if customers are satisfied then it proves our worth well. Customers are always given quick support.
Company Profile
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
Axial angular contact bearings ZKLF70155-2Z, ZKLF70155-2Z-HL-HC,ZKLF80165-2Z with ceramic balls
BrandINA
Item NumberZKLF70155-2Z-HC INA
CategoryAngular Contact Thrust Ball Bearings, Double Direction
Inner (d) MM70
Outer (D) MM155
Width (B) MM45
Inner (d) Inch2.7559
Outer (D) Inch6.1024
Width (B) Inch1.7717
Weight (kg)4.9
Cage TypeP - Plastic Molded Cage
PrecisionH4 - Hybrid / Ceramic Balls / P4
The ZKLF70155-2Z-HC INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.
The outer ring of the ZKLF70155-2Z-HC INA is equipped with bolt holes, allowing this bearing to be easily mounted directly onto or into the adjacent structure. No separate cover is needed to secure the bearing, reducing installation time and effort. Additionally, the outer ring has a groove for easy removal from the housing. The ZKLF70155-2Z-HC INA thus enables a rigid bearing arrangement that is easy to assemble and disassemble.
