GE 60 ES-2RS
SKF

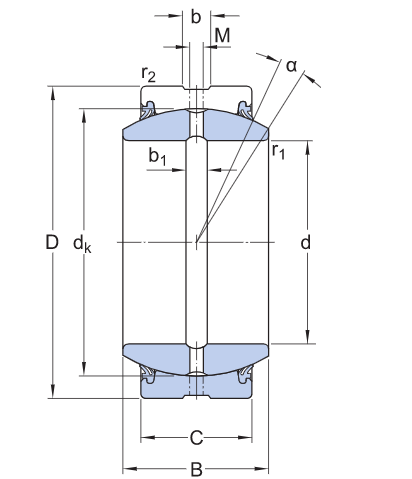

| d | 60 mm | Bore diameter |
|---|---|---|
| D | 90 mm | Outside diameter |
| B | 44 mm | Width |
| C | 36 mm | Width outer ring |
| α | 6 ° | Angle of tilt |
| dk | 80 mm | Raceway diameter inner ring |
| b | 6.2 mm | Width annular lubrication groove at outer ring |
| b1 | 6.4 mm | Width annular lubrication groove at inner ring |
| M | 4 mm | Diameter lubrication hole (outer ring) |
| r1 | min.1 mm | Chamfer dimension bore |
| r2 | min.1 mm | Chamfer dimension outer ring |
| Basic dynamic load rating | C | 245 kN |
|---|---|---|
| Basic static load rating | C0 | 1 220 kN |
| Specific dynamic load factor | K | 100 N/mm² |
| Specific static load factor | K0 | 500 N/mm² |
| Material constant | KM | 330 |
| Mass plain bearing | 1.1 kg |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
| d | 60 mm | Bore diameter |
|---|---|---|
| D | 90 mm | Outside diameter |
| B | 44 mm | Width |
| C | 36 mm | Width outer ring |
| α | 6 ° | Angle of tilt |
| dk | 80 mm | Raceway diameter inner ring |
| b | 6.2 mm | Width annular lubrication groove at outer ring |
| b1 | 6.4 mm | Width annular lubrication groove at inner ring |
| M | 4 mm | Diameter lubrication hole (outer ring) |
| r1 | min.1 mm | Chamfer dimension bore |
| r2 | min.1 mm | Chamfer dimension outer ring |
| Basic dynamic load rating | C | 245 kN |
|---|---|---|
| Basic static load rating | C0 | 1 220 kN |
| Specific dynamic load factor | K | 100 N/mm² |
| Specific static load factor | K0 | 500 N/mm² |
| Material constant | KM | 330 |
| Mass plain bearing | 1.1 kg |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
