| Quantity: | |
|---|---|

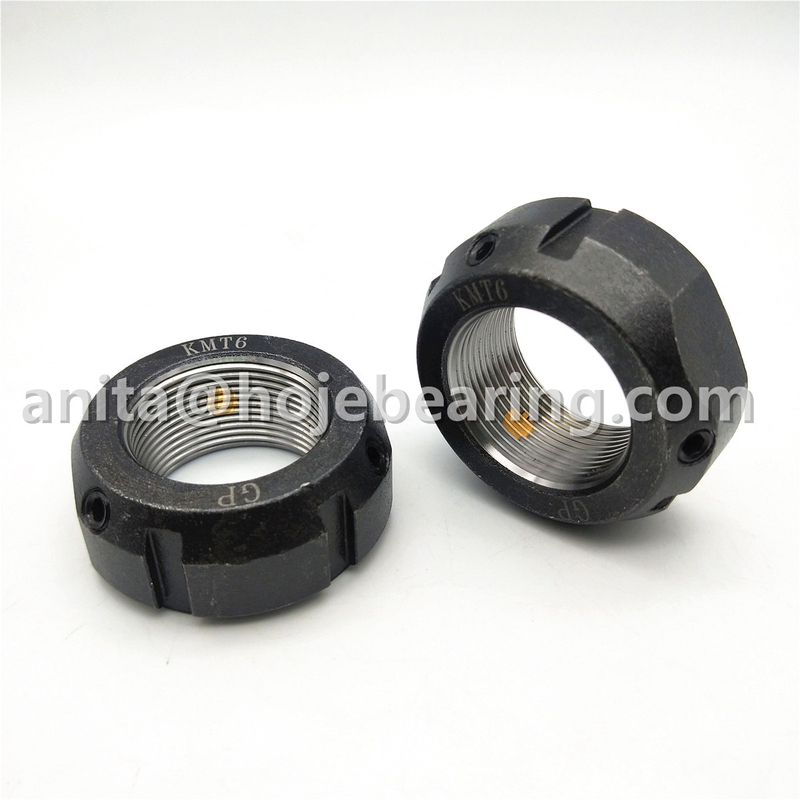

KMT 6
SKF
| G | M 30x1.5 | Thread |
|---|---|---|
| d1 | 44 mm | Outside diameter locating side face |
| B | 20 mm | Width |
| d3 | 49 mm | Outside diameter |
| d4 | 32 mm | Inner diameter locating side face |
| d5 | 41 mm | Diameter side face opposite to bearing |
| M | 46 mm | Width flat spanner |
| b | 5 mm | Width locating slot |
| h | 2 mm | Depth locating slot |
| Axial static load carrying capacity | 160 kN |
| Mass | 0.16 kg |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
