| Quantity: | |
|---|---|
PWTR35-2RS-RR-RL
INA
| d | 35 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 29 mm | Width, inner ring |
| Cr w | 39,000 N | Basic dynamic load rating, radial |
| C0r w | 53,000 N | Basic static load rating, radial |
| Cur w | 7,100 N | Fatigue load limit, radial |
| nD G | 1,800 1/min | Speed on permanent grease lubrication |
| F0r per | 53,000 N | Permissible static load, radial |
| Fr per | 38,500 N | Permissible dynamic load outer ring, radial |
| ≈m | 0.616 kg | Weight |
| C | 28 mm | Width, outer ring |
| d2 | 44 mm | Stop diameter of thrust washer |
| rmin | 1.1 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |

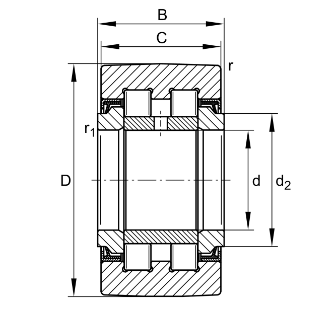

Product Picture
Packing, Payment, Delievry, and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggested, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amounts) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
| d | 35 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 29 mm | Width, inner ring |
| Cr w | 39,000 N | Basic dynamic load rating, radial |
| C0r w | 53,000 N | Basic static load rating, radial |
| Cur w | 7,100 N | Fatigue load limit, radial |
| nD G | 1,800 1/min | Speed on permanent grease lubrication |
| F0r per | 53,000 N | Permissible static load, radial |
| Fr per | 38,500 N | Permissible dynamic load outer ring, radial |
| ≈m | 0.616 kg | Weight |
| C | 28 mm | Width, outer ring |
| d2 | 44 mm | Stop diameter of thrust washer |
| rmin | 1.1 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
Product Picture
Packing, Payment, Delievry, and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggested, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amounts) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
