| Quantity: | |
|---|---|
RUS26102
INA

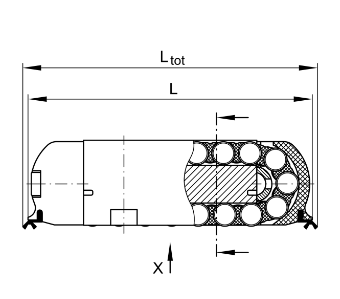

| Ltot | 106 mm | total length |
| L | 102.4 mm | |

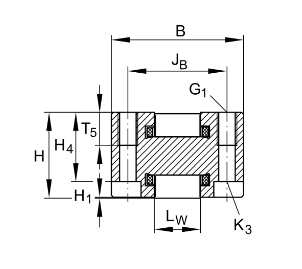

| B | 40 mm | Width |
| H | 26 mm | Height |
| C | 95,000 N | Basic dynamic load rating |
| C0 | 75,000 N | Basic static load rating |
| ≈m | 0.6 kg | Weight |

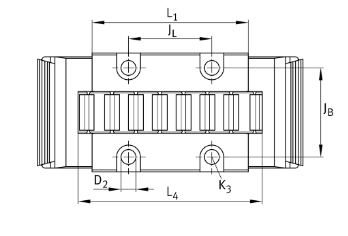

| L1 | 68.9 mm | Mounting dimension |
| JB | 30 mm | Mounting dimension |
| JL | 44 mm | Mounting dimension |
| H1 | 0.2 mm | |
| L4 | 79 mm | minimum support length 1 |
| LW | 14 mm | |
| H4 | 21 mm | |
| T5 | 10.2 mm | |
| G1 | M6 | fixing screws top (DIN ISO 4762-12.9) |
| G1 MA | 17 Nm | Tightening torrque fixing screws |
| K3 | M4 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA max | 5 Nm | Tightening torque fixing screws 2 |
| D2 | 4.9 mm | |
| 6 mm |
| VUS26102-A | Adjustment gib | |
| UG9741, UGN9741-A, UZ9741, UZN9741-A, UFK4710, UFB6412 | suitable Guide rail |
Products Picture
Packing, Payment, Delievry, and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggested, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amounts) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
