| d | 70 mm | Bore diameter |
|---|---|---|
| D | 110 mm | Outside diameter |
| B | 20 mm | Width |
| d1 | 82.3 mm | Shoulder diameter of inner ring (large side face) |
| d2 | 82.3 mm | Shoulder diameter of inner ring (small side face) |
| D1 | 97.7 mm | Shoulder diameter of outer ring (large side face) |
| r1,2 | min.1.1 mm | Chamfer dimension (large side face) |
| r3,4 | min.0.6 mm | Chamfer dimension (small side face) |
| a | 22.1 mm | Distance from side face to pressure point |
| da | min.76 mm | Diameter of shaft abutment |
|---|---|---|
| db | min.76 mm | Diameter of shaft abutment |
| Da | max.104 mm | Diameter of housing abutment |
| Db | max.106 mm | Diameter of housing abutment |
| ra | max.1 mm | Radius of fillet |
| rb | max.0.6 mm | Radius of fillet |

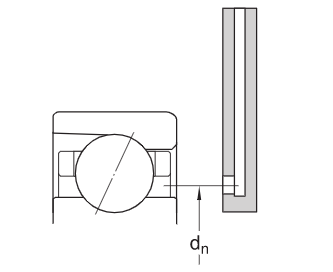

| dn | 85 mm | Psition of oil nozzle |
CALCULATION DATA
| Basic dynamic load rating | C | 52 kN |
|---|---|---|
| Basic static load rating | C0 | 45.5 kN |
| Fatigue load limit | Pu | 1.93 kN |
| Attainable speed for grease lubrication | 12 000 r/min | |
| Attainable speed for oil-air lubrication | 19 000 r/min | |
| Contact angle | α | 15 ° |
| Ball diameter | Dw | 12.7 mm |
| Number of balls | z | 19 |
| Reference grease quantity | Gref | 8.1 cm³ |
| Mass | 0.6 kg |
