51117
SKF

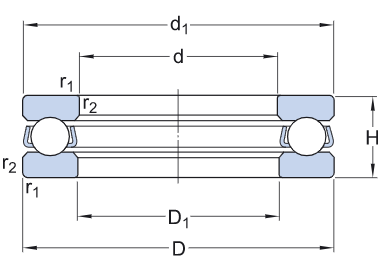

| d | 85 mm | Bore diameter |
|---|---|---|
| D | 110 mm | Outside diameter |
| H | 19 mm | Height |
| d1 | ≈110 mm | Outside diameter shaft washer |
| D1 | ≈87 mm | Inner diameter housing washer |
| r1,2 | min.1 mm | Chamfer dimension washer |

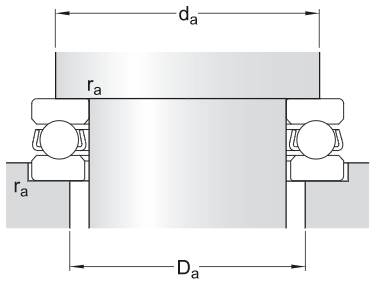

| da | min.100 mm | Abutment diameter shaft |
|---|---|---|
| Da | max.95 mm | Abutment diameter housing |
| ra | max.1 mm | Fillet radius |
| Mass bearing (including seat washer where applicable) | 0.44 kg |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
| d | 85 mm | Bore diameter |
|---|---|---|
| D | 110 mm | Outside diameter |
| H | 19 mm | Height |
| d1 | ≈110 mm | Outside diameter shaft washer |
| D1 | ≈87 mm | Inner diameter housing washer |
| r1,2 | min.1 mm | Chamfer dimension washer |
| da | min.100 mm | Abutment diameter shaft |
|---|---|---|
| Da | max.95 mm | Abutment diameter housing |
| ra | max.1 mm | Fillet radius |
| Mass bearing (including seat washer where applicable) | 0.44 kg |
