GRAE30-NPP-B
INA
Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel, and seals of type P, R, L, or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly.
The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft; see Compensation of misalignments.
They are located on the shaft by means of eccentric locking collars, grub screws in the inner ring, adapter sleeves, drive slots, or fit. Radial insert ball bearings are particularly easy to fit, are suitable for drawn shafts of grades h6 to h9, and can be relubricated with only a few exceptions.
Some series with eccentric locking collars or grub screws in the inner ring are also available with inch-size bore dimensions.
d | 30 mm | Bore diameter |
Dsp | 62 mm | Outside diameter |
B | 23.8 mm | Width |
B1 | 35.8 mm | Locking collar total width |
Cr | 19,500 N | Basic dynamic load rating, radial |
C0r | 11,300 N | Basic static load rating, radial |
Cur | 480 N | Fatigue load limit, radial |
~m | 0.32KG | Weight |

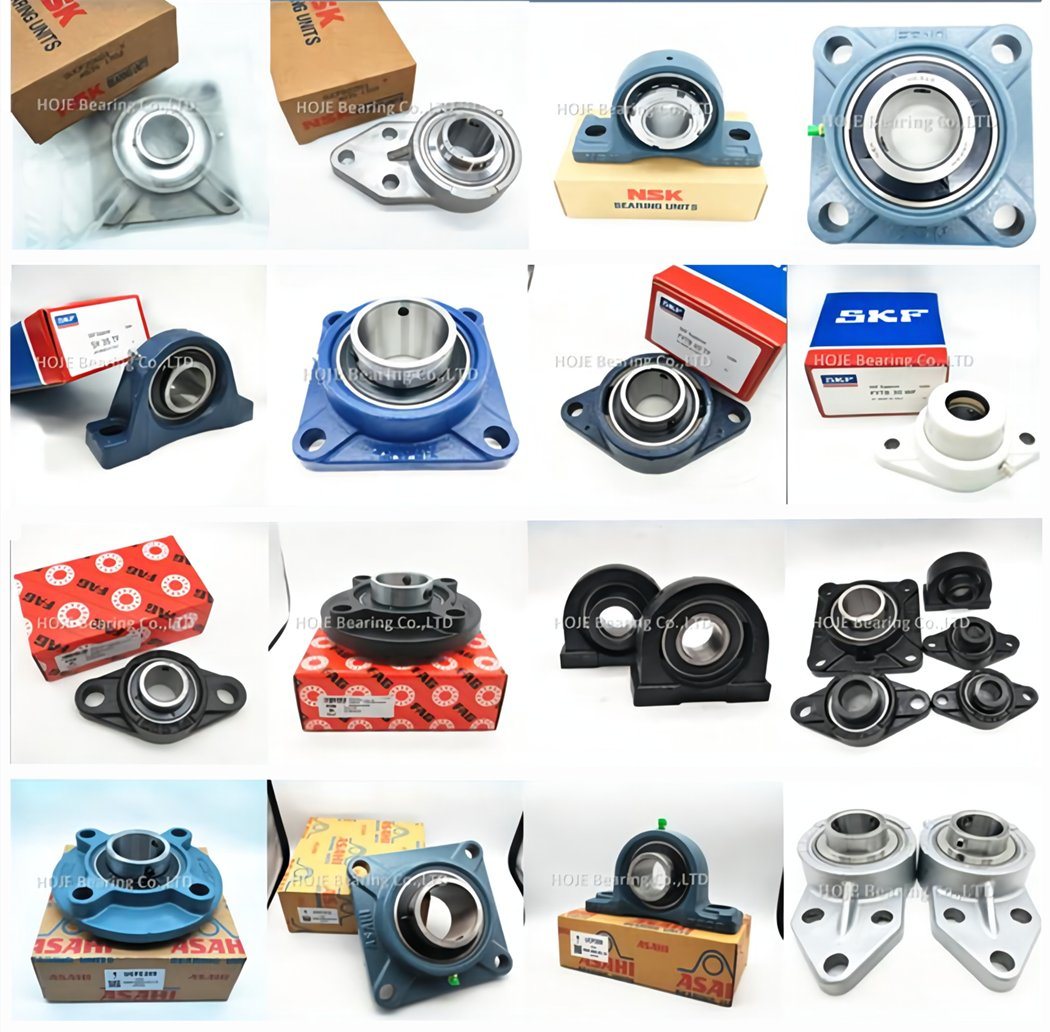

Product Photos
Our Advantages
1. FREE SAMPLES: contact us by email or trade manager, and we will send the free samples according to your request.
2. World-Class Bearing: We provide our customers with all types of bearing with world-class quality.
3. OEM or Non-Stand Bearings: Any requirement for Non-standard bearings is Easily Fulfilled by us due to our vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5. After Sales Service and Technical Assistance: Company provides after-sales service and technical assistance as per the customer's requirements and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant, and high-reliability bearings with excellent quality and better performance. Resulting in increased cost savings.
8. Attending customer queries promptly: We believe that if customers is satisfied then it proves our worth well. Customers are always given quick support.
Company Profile
Packaging & Shipping
FAQ
1. What is the minimum order quantity for this product?
Can be negotiated, and we will try our best to meet customer needs. Our company is mainly based on wholesale sales, most customers orders are more than 1 ton.
2. What is your latest delivery time?
Most orders will be shipped within 3-10 days of payment being received.
3. What is the competitiveness of your company's products compared to other companies?
High precision, high speed, low noise.
4. What are the advantages of your company's services compared to other companies?
Answer questions online 24 hours a day, reply in a timely manner, and provide various documents required by customers for customs clearance or sales. 100% after-sales service.
5. Which payment method does your company support?
Do our best to meet customer needs.
6. How to contact us quickly?
Please send us an inquiry or message and leave your other contact information, such as phone number, Whatsapp account or WeChat account, we will contact you as soon as possible and provide the detailed information you need.
