YAR 204-2RF/HV
SKF

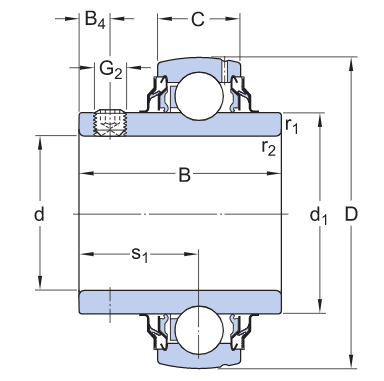

| d | 20 mm | Bore diameter |
|---|---|---|
| D | 47 mm | Outside diameter |
| B | 31 mm | Width of inner ring |
| C | 14 mm | Width of outer ring |
| d1 | ≈28.2 mm | Outside diameter of inner ring |
| B4 | 4.5 mm | Distance face to thread centre |
| r1,2 | min.0.6 mm | Chamfer dimension of inner ring |
| s1 | 18.3 mm | Distance from locking device side face to bearing centre |
| Basic dynamic load rating | C | 10.8 kN |
|---|---|---|
| Basic static load rating | C0 | 6.55 kN |
| Fatigue load limit | Pu | 0.28 kN |
| Limiting speed1) | 5 000 r/min | |
| Calculation factor | f0 | 13 |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
