| Quantity: | |
|---|---|
RASE30-N
INA

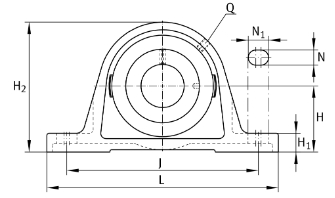

| d | 30.00 mm | Bore diameter |
| L | 158.00 mm | Length total |
| H2 | 82.00 mm | Hight |
| ≈m | 1.20 kg | Weight |
| J | 117.50 mm | Distance fixing bore |
| N | 14.00 mm | Width (slot) |
| N1 | 22.00 mm | Length (slot) |
| H | 42.90 mm | Distance shaft axis |
| A | 40.00 mm | Width (base) |
| A1 | 25.00 mm | Width (head) |
| H1 | 17.00 mm | Heigth (base) |
| B1 | 48.50 mm | Locking collar total width |
| S1 | 30.20 mm | Distance of raceway to locking collar |
| Q | M6 | Connection thread lubrication |
| GE30-N-KRR-B | Bearing designation | |
| KASK06 | Protecting cap |
Product Picture
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
| d | 30.00 mm | Bore diameter |
| L | 158.00 mm | Length total |
| H2 | 82.00 mm | Hight |
| ≈m | 1.20 kg | Weight |
| J | 117.50 mm | Distance fixing bore |
| N | 14.00 mm | Width (slot) |
| N1 | 22.00 mm | Length (slot) |
| H | 42.90 mm | Distance shaft axis |
| A | 40.00 mm | Width (base) |
| A1 | 25.00 mm | Width (head) |
| H1 | 17.00 mm | Heigth (base) |
| B1 | 48.50 mm | Locking collar total width |
| S1 | 30.20 mm | Distance of raceway to locking collar |
| Q | M6 | Connection thread lubrication |
| GE30-N-KRR-B | Bearing designation | |
| KASK06 | Protecting cap |
