FY 50 TF
SKF
| d | 50 mm | Bore diameter |
|---|---|---|
| d1 | ≈ 62.51 mm | Outer diameter inner ring |
| A | 43 mm | Overall width |
| A1 | 15 mm | Flange width |
| A3 | 3.2 mm | Depth of centring recess |
| A5 | 33 mm | Standout of end cover |
| B | 51.6 mm | Width of inner ring |
| B4 | 9 mm | Distance from locking device side face to thread centre |
| Db1 | 107 mm | Top external diameter |
| Db2 | 118 mm | Base external diameter |
| Dc | 125.4 mm | Centring diameter |
| J | 111 mm | Distance between attachment bolts |
| L | 143 mm | Overall length |
| N | 18 mm | Diameter of attachment bolt hole |
| s1 | 32.6 mm | Distance from locking device side face to raceway centre |
| T | 60.6 mm | Overall unit width |
| J6 | 129 mm | Distance of dowel pins |
|---|---|---|
| J7 | 35.5 mm | Axial offset of dowel pins |
| N4 | 4 mm | Recommended diameter for dowel pins |
| Basic dynamic load rating | C | 35.1 kN |
|---|---|---|
| Basic static load rating | C0 | 23.2 kN |
| Fatigue load limit | Pu | 0.98 kN |
| Limiting speed | 4 000 r/min | |
| with shaft tolerance h6 | ||
MASS
| Mass bearing unit | 2.3 kg |
| Set screw | G2 | M10x1 |
|---|---|---|
| Hexagonal key size for set screw | 5 mm | |
| Recommended tightening torque for set screw | 16.5 Nm | |
| Recommended diameter for attachment bolts, mm | G | 16 mm |
| Recommended diameter for attachment bolts, inch | G | 0.625 in |

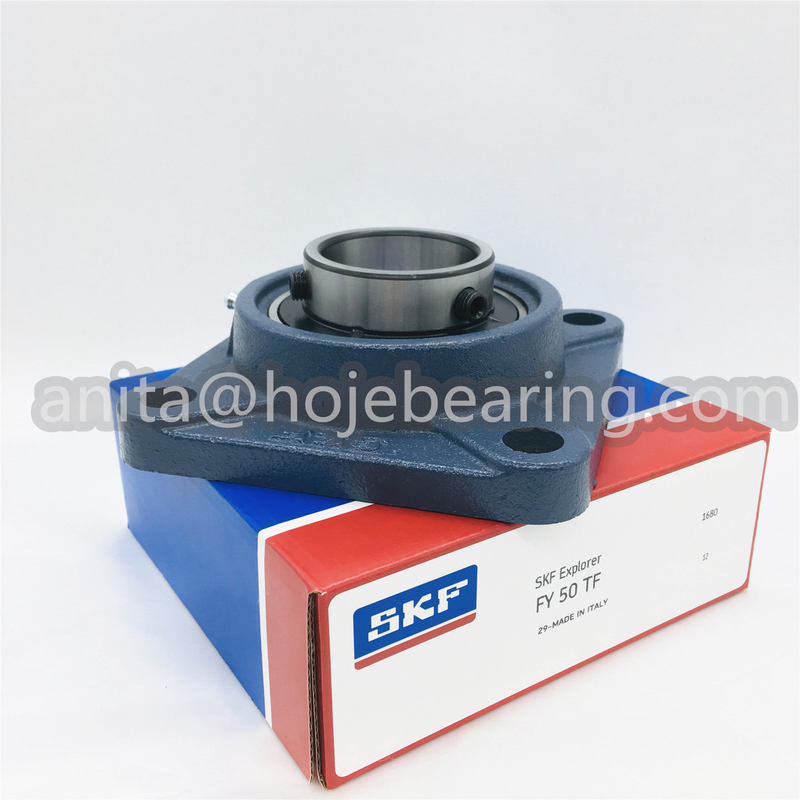

Product Picture
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
